Signac™ – Maskless Robotic Paint System
Figure’s Signac technology provides robotic painting without the need for time-consuming masking nor stencils in the aerospace and defense Industry, significantly reducing time and costs, improving productivity, and expanding possibilities for concurrent work.
Signac is being developed in partnership with US Air Force using Aerospace Industry and Military approved paint including 2k high solid paints like MIL-PRF-85285. Signac uses smart realtime controlled droplet deposition that enables precision painting.
Revolutionizing the paint industry one drop at a time
Our novel patent pending technology if named after Paul Victor Jules Signac (seen-YAHK) 18th Century French Neo-Impressionist painter helped develop the artistic technique – Pointillism – Creating Masterpieces with 1000s of Drops of paint
PRODUCT DESCRIPTION
Product Features
- Non-spray paint application with precise rapid droplet technology
- Integrates with mobile platform
- Compact form for collaborative robots
- Print area is scalable based on the robot platform
- Paints with aerospace industry approved MIL-PRF-85285
- No air supply needed
Technical Specifications
| Description | Capabilities/Value |
| Surface Curvature | Low to High Complex Compound Curvature |
| Print Features | Letter, logos, symbols, stripes, etc. |
| Letters | Legible at ¼” x ¼” |
| Orientations | Horizonal, Vertical, and Upside Down |
| Resolution | <1mm |
| Power requirements | 120VAC ; 20amps |
| Paints | 1k, 2k, waterbased, high solids, high viscosity |
Product Benefits
- No Mask. No Stencils.
- Reduces time and costs for detailed paint operations
- Improves productivity for production manufacturing and MRO services
- Enables concurrent work

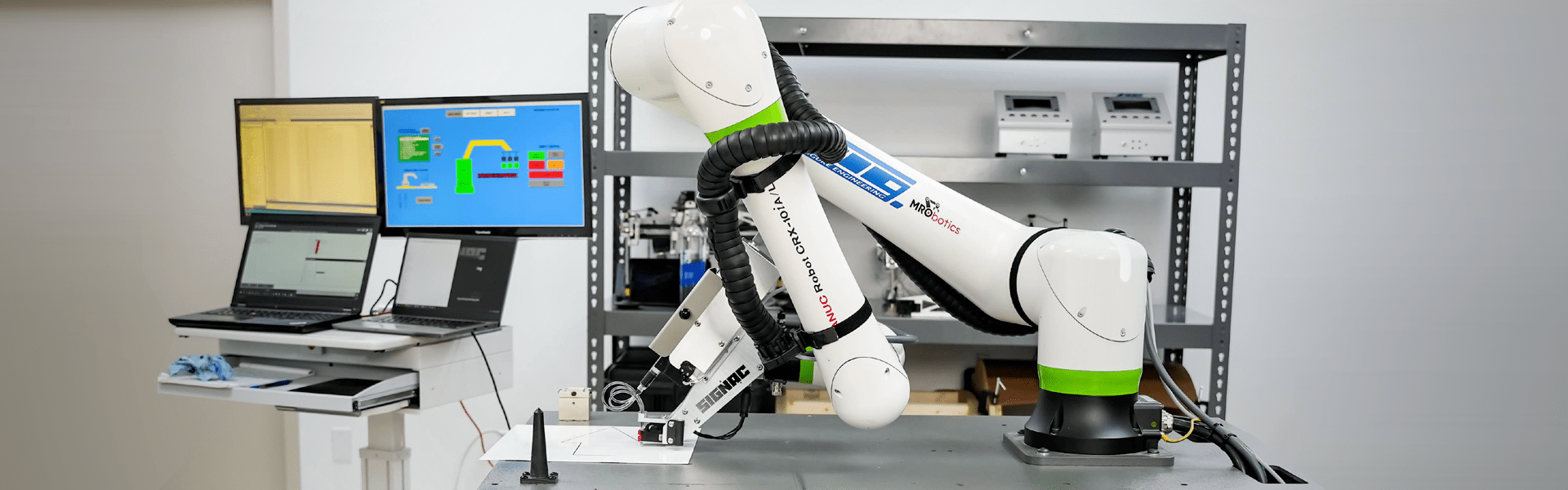

Figure partners with Fanuc to deliver Signac integrated with Fanuc’s CRX collaborative robots to allow users to maintain a flexible factory floor.
Signac created a hand placed version, Signac Lite, that integrates on a carbon fiber light weight linear gantry stage with pneumatic suction stabilizers. Signac Lite is great for quick jobs on low contour surfaces.
